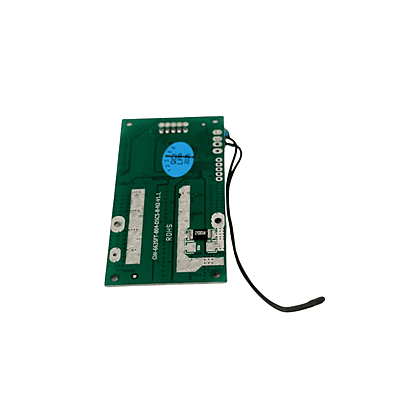

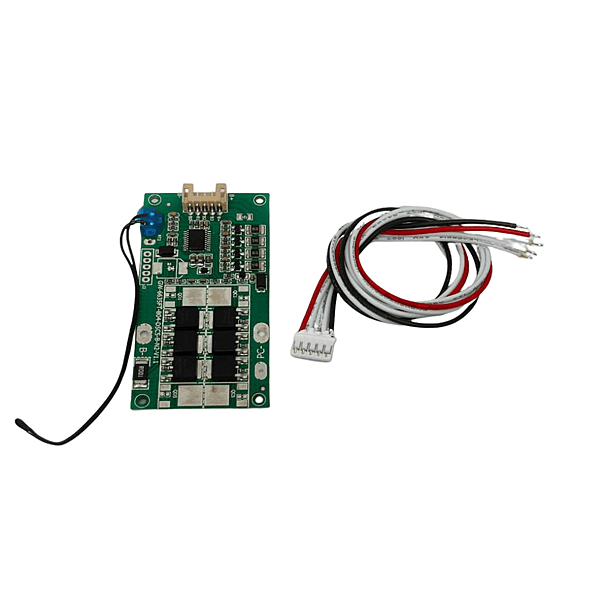

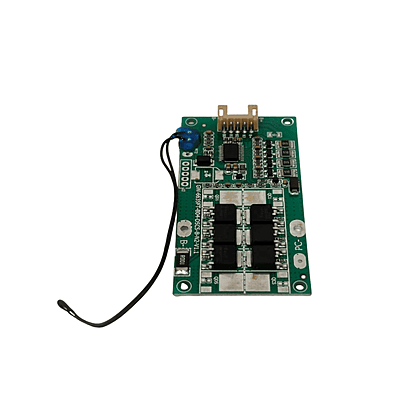

BMS LFP 04S/15AMP WITH CONNECTOR( JLGW)

The JLGW BMS LFP 04S/15AMP WITH CONNECTOR is a battery management system designed for 4S (4 series) Lithium Iron Phosphate (LiFePO4) battery packs, supporting a continuous discharge current of 15A and featuring an integrated connector for easy installation. It is commonly used in energy storage, e-bikes, solar power banks, and other medium-power applications.​ Key Specifications Battery Type: LiFePO4 (LFP) Configuration: 4S (12.8V nominal, 14.6V max) Continuous Discharge: 15A Charging Current: Up to 15A Balance Function: Yes, passive balancing Overcharge Protection: Yes (≈3.5V per cell) Over-discharge Protection: Yes (≈2.0V per cell) Short Circuit Protection: Yes (auto recovery) Temperature Protection: Yes (NTC included) Connector: Pre-soldered JST-style connector for plug-and-play integration​ PCB Color: Green Form Factor: Compact with screw mount holes
