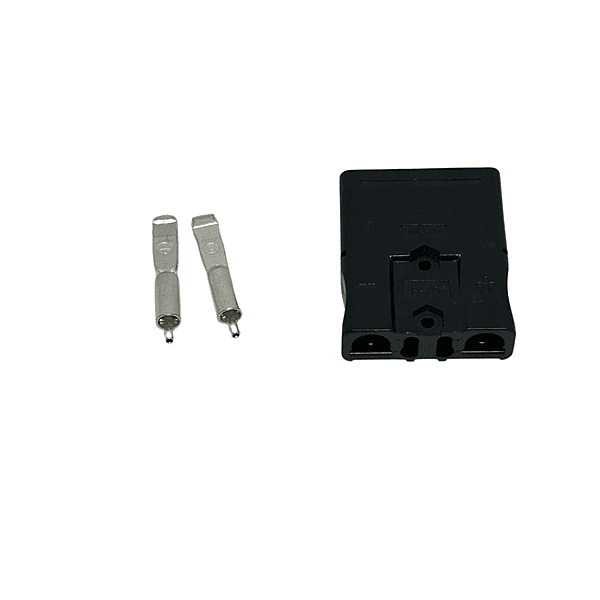

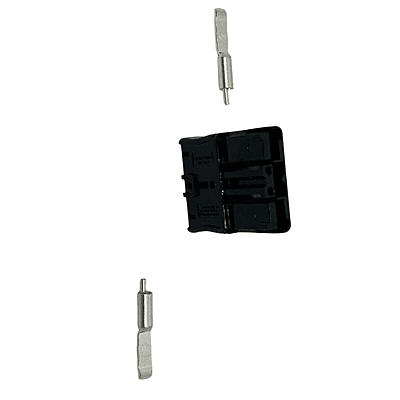

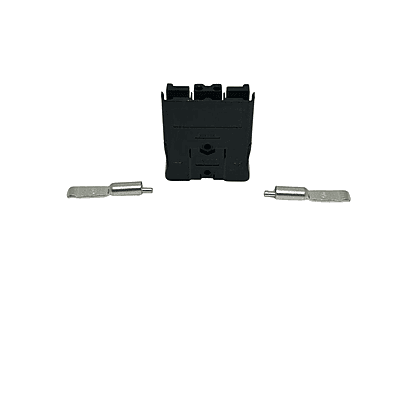

SB75 CONNECTOR SET

The SB75 Connector Set is a high-current, genderless power connector set designed mainly for electric vehicles, solar power systems, and heavy-duty industrial equipment. It is rated for 75A continuous current and up to 600V, making it suitable for DC power distribution and battery connections in demanding applications. Key Specifications and Features: Current Rating: 75 Amps continuous Voltage Rating: Up to 600 Volts DC Connector Type: SB75 Anderson style, genderless (can mate with identical connectors flipped 180°) Housing Material: Durable polycarbonate/PBT blend, impact-resistant and weatherproof Contact Material: Pure copper with silver plating for low contact resistance and corrosion resistance Wire Size Range: Supports 16 to 6 AWG (1.3 to 13.3 mm²) cables Locking Mechanism: Robust locking for secure connections and easy disengagement Color: Typically black (some variants may have color-coded housings for easy identification) Application Areas: Electric vehicle battery and power connections, solar panel systems, forklifts, industrial equipment, battery chargers, and more
