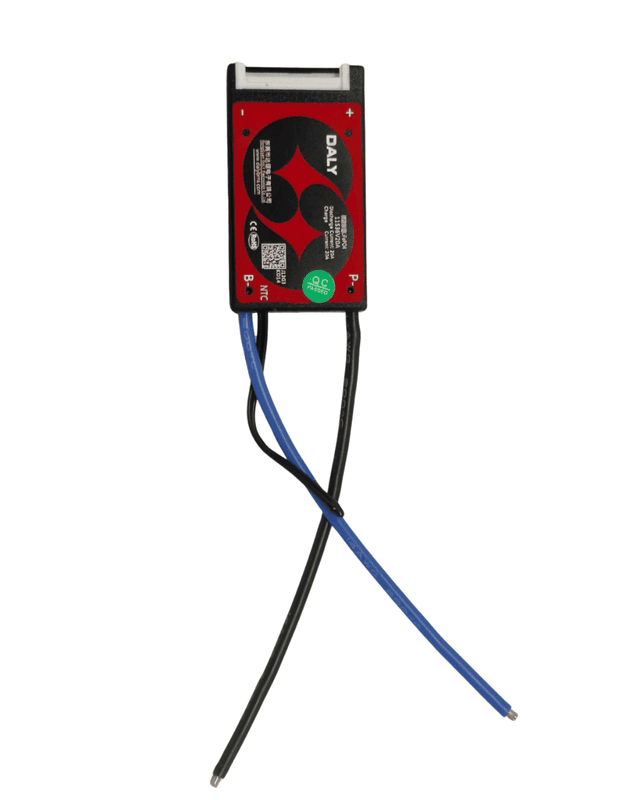

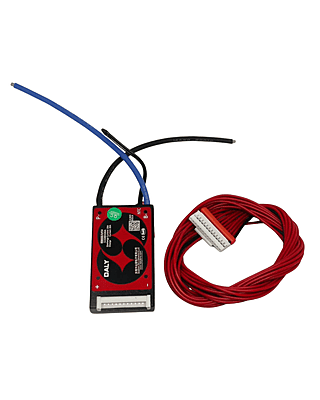

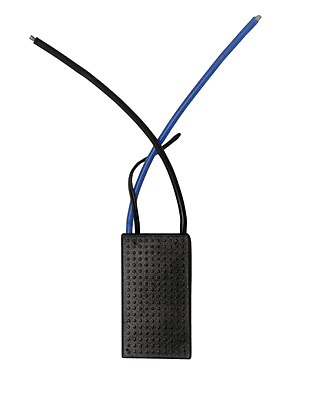

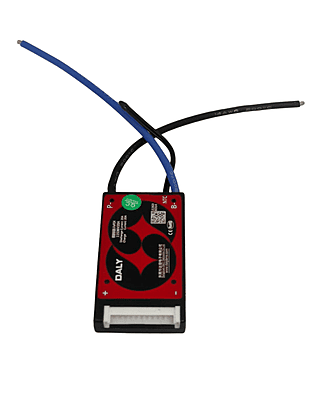

BMS LFP 11S 20A SAME PORT W/P DALY ( 85079090)

The BMS LFP 11S 20A SAME PORT W/P DALY is a Battery Management System (BMS) designed specifically for Lithium Iron Phosphate (LiFePO4 or LFP) battery packs consisting of 11 series cells. Key Specifications: Configuration: 11 series (11S) cells, suitable for battery packs with nominal voltage around 36.3V to 39.6V depending on cell specification Current Rating: 20A continuous discharge current capacity Port Type: Same port for charging and discharging, simplifying wiring and connections Manufacturer: DALY, known for reliable and waterproof BMS hardware Protection Features: Overcharge, over-discharge, over-current, short circuit, and temperature protections Cell Balancing: Active or passive cell balance function to maintain uniform charge across all 11 cells, improving battery lifespan and efficiency Waterproofing: Designed with waterproof capabilities, ideal for electric vehicles and outdoor applications Application: Used in electric bikes, scooters, and other LFP battery-powered systems requiring reliable battery protection and management
