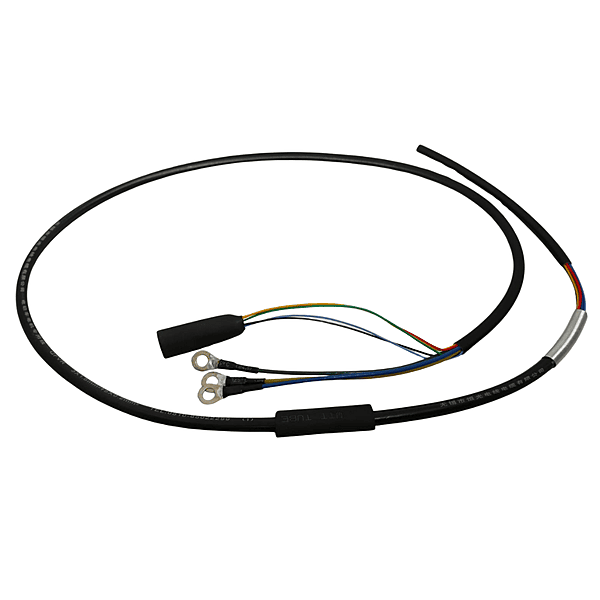

MOTOR CABLE (800 WATT)

MOTOR CABLE (800 WATT) is the wiring harness linking the controller to an 800W brushless hub motor in electric scooters, featuring phase wires for power delivery and Hall sensor wires for motor control signals.​ Key specifications Wire gauge: 14-16 AWG for 3 thick phase wires (handling 20-30A at 48-60V), plus 5 thinner Hall sensor wires (0.2mm²); overall diameter ~6mm with tinned copper for heat/flame resistance.​ Configuration: 3 phase (typically blue/green/yellow) + 5 Hall (red/black/blue/green/yellow), waterproof connectors (e.g., MT60 style), length around 100-105 cm (41 inches).​ Ratings: Suited for 800-1200W BLDC motors, vibration-resistant insulation for two-wheeler durability.
