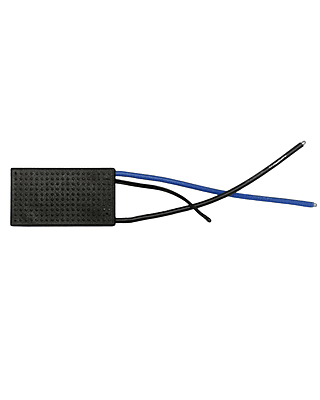

BMS LFP 11S20A JBD (HP16SA)

The BMS LFP 11S20A JBD (Model HP16SA) is a Battery Management System designed specifically for 11 series Lithium Iron Phosphate (LiFePO4 or LFP) battery packs with a nominal voltage of about 36.3V. Key Specifications: Battery Configuration: 11 cells in series (11S) Continuous Discharge Current: 20A Charge Voltage: Approx. 40.15V (3.65V per cell) Balancing Current: Around 70±25mA passive balancing Protection Features: Overcharge, over-discharge, over-current, short circuit with auto recovery, and temperature protections Interface: Charge and discharge on the same port for simplified wiring Low Power Consumption: Quiescent current ≤60μA for efficiency Operating Temperature: Typically -20°C to 75°C
