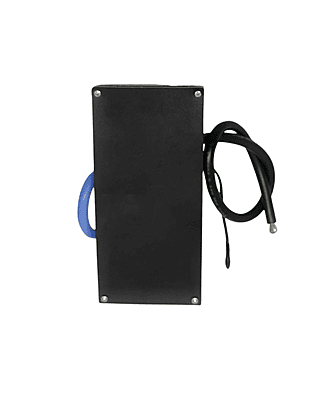

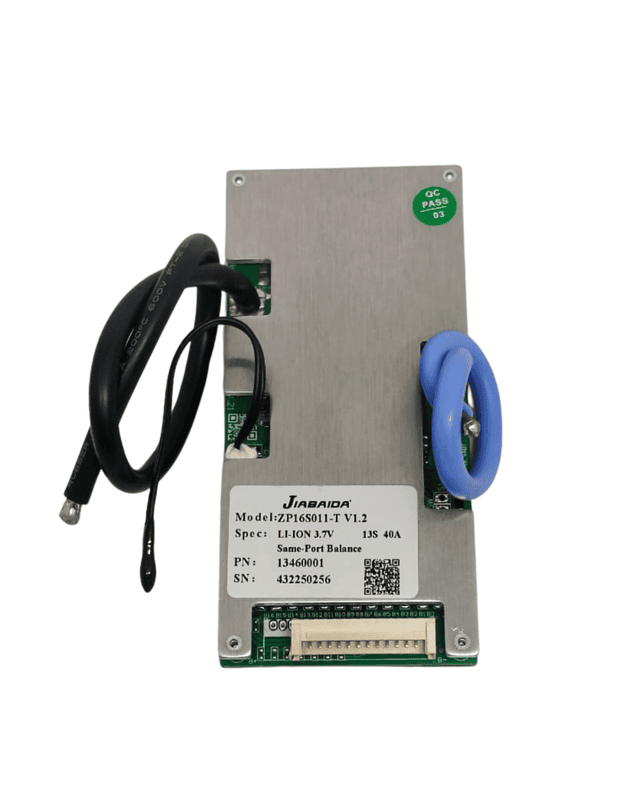

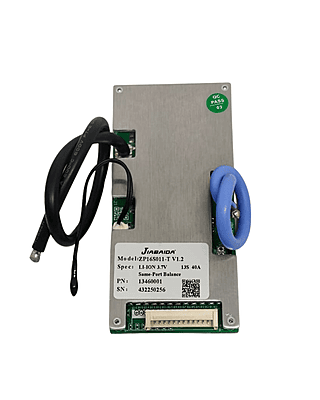

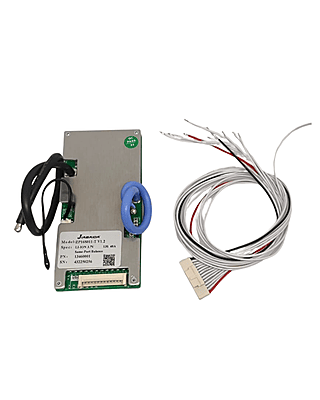

BMS NMC 13S40A JBD (ZP16S011)

The BMS NMC 13S40A JBD (Model ZP16S011) is a Battery Management System designed for 13 series Lithium-ion/Nickel Manganese Cobalt (NMC) battery packs with a nominal voltage of approximately 48.1V. Key Specifications: Battery Configuration: 13 cells in series (13S) Continuous Discharge Current: 40A Charge Current: 20A Charge Voltage: About 54.6V (4.2V per cell) Protection Features: Overcharge, over-discharge, over-current, short circuit with auto-recovery, temperature protection (over and under), and balancing to ensure safe and efficient battery operation Cell Balancing: Passive balancing to maintain cell voltage uniformity and extend battery life Communication: Usually supports connections for monitoring and firmware updates (CAN or UART may vary) Operating Temperature: -20°C to 75°C Design: Compact, lightweight, and durable for easy integration into battery packs
