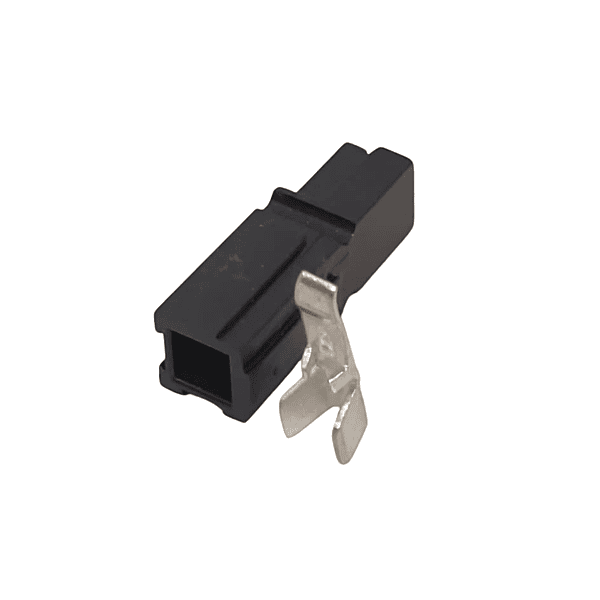

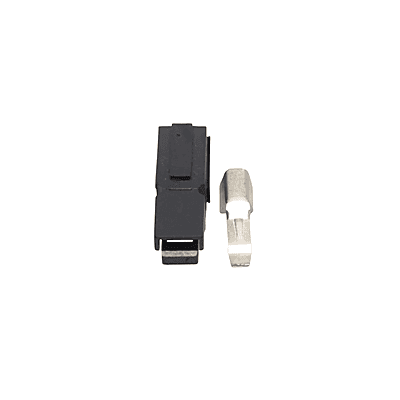

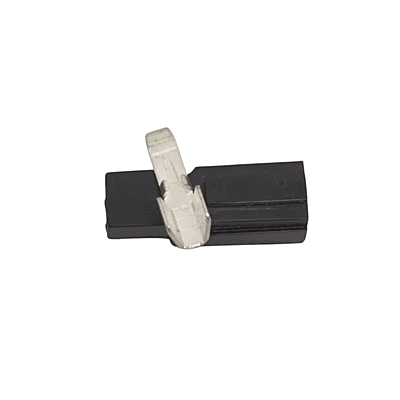

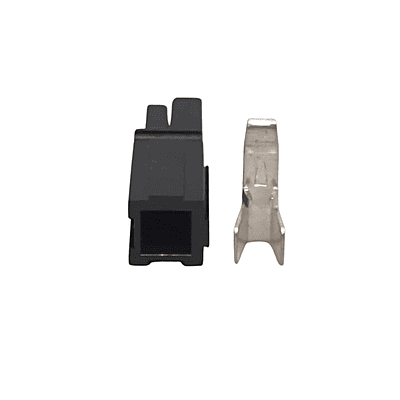

SINGLE POLE 45A CONNECTOR BLACK

The SINGLE POLE 45A CONNECTOR BLACK is an ideal power connection solution for electric vehicles (EVs), including two-wheelers like electric scooters and e-bikes. It is designed to handle a continuous current of up to 45 amps and withstand voltages up to 600V AC/DC, making it suitable for typical EV battery packs and power distribution systems. Key Features for EV Two Wheelers Current Rating: 45A continuous current, capable of supporting motor and battery demands in EV two wheelers Voltage Rating: 600V AC/DC, suitable for high voltage battery packs Durable Construction: Plastic housing (typically black) built for high-impact resistance and secure insulation Contact Material: Copper with silver plating for minimal electrical resistance and excellent conductivity Mating Durability: Rated for up to 10,000 mating cycles ensuring long-lasting performance in vibrational environments of EVs Operating Temperature: -20°C to +105°C, suitable for various climate conditions EVs operate in Safety Compliance: Certified to UL1977, CE, RoHS ensuring reliable and safe power connections Design: Single pole with quick-connect/disconnect feature for easy assembly and maintenance Protection: Usually IP20 rated for finger-safe protection around high current contacts Applications in EV Two Wheelers Battery pack power connections and intercell wiring Motor controller power inputs and outputs Charging port connections with safe high current transfer Auxiliary power connections in scooters and electric bikes Renewable energy battery integration for electric two-wheeler charging systems
