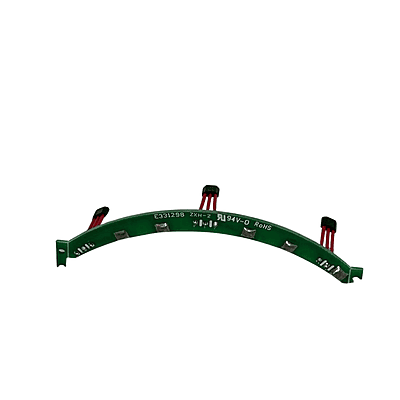

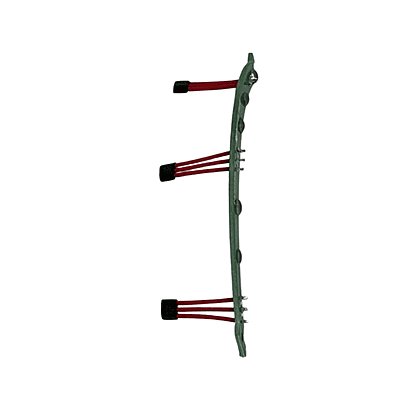

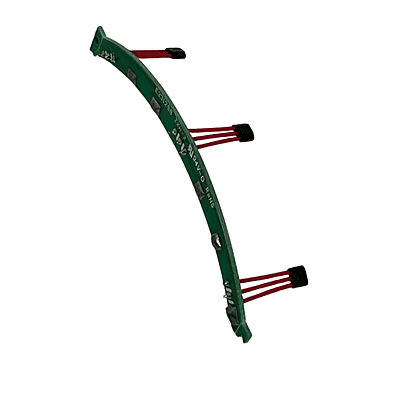

HALL SENSOR PLATE - LONG CUR

The Hall Sensor Plate with a long curved PCB design, often referred to as "Long Cur," is a specialized sensor plate used in electric vehicle BLDC motors. This design typically features a longer, curved PCB track layout that accommodates specific motor geometries and installation requirements, ensuring optimal alignment with the rotor magnets for precise rotor position detection. Key Specifications and Features: PCB Design: Long curved shape for tailored fit in certain motor housings​ Sensor Type: Hall effect sensors integrated on the PCB for rotor position sensing Lead Length: Typically includes extended leads (~20 inches or longer) for easy wiring and installation Material & Insulation: Often copper leads with polyurethane or Teflon insulation for durability and electrical safety Electrical Characteristics: High sensitivity, fast response time, low output resistance, and operating voltage generally between 3.3V to 24V Application: Used in electric scooters, bikes, and other BLDC motor-driven EVs for smooth commutation and efficient motor control Benefits: Enhanced alignment accuracy, reduced electromagnetic interference, reliable performance in varying temperature and vibration conditions
