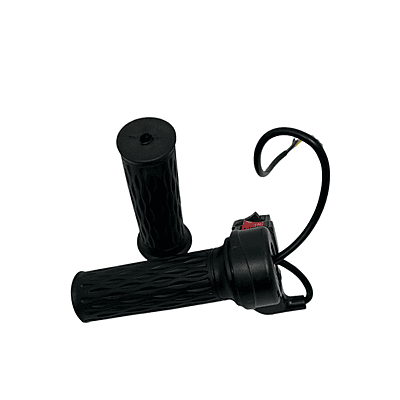

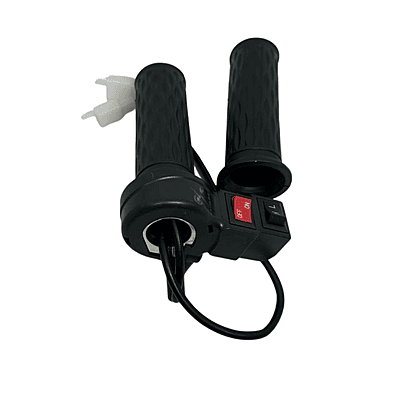

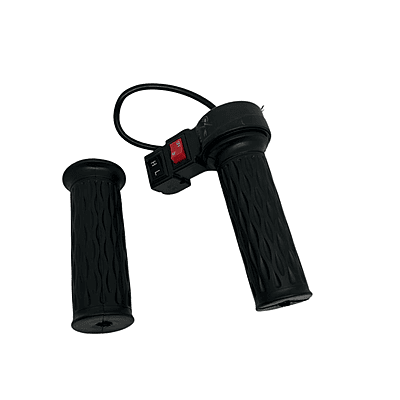

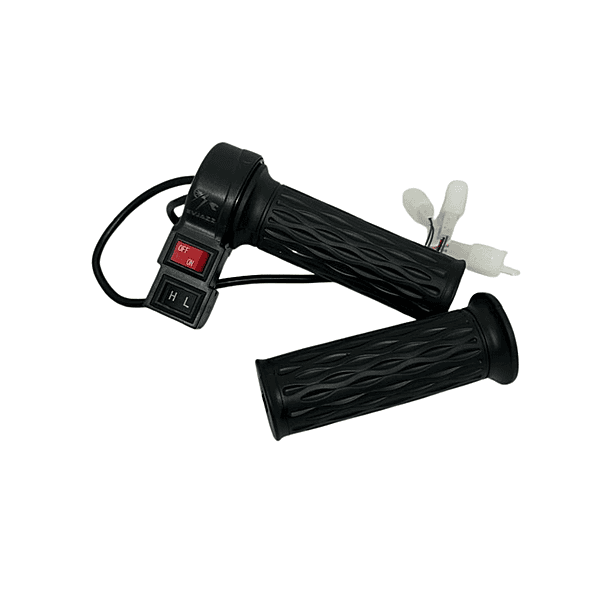

THROTTLE HL ON/OF

The "Throttle HL ON/OFF" function typically refers to a throttle equipped with a high/low speed switch or an on/off switch for controlling different speed modes or enabling/disabling the throttle output on electric scooters and e-bikes. Key Details: Functionality: Provides the user the ability to toggle between high and low speed modes or simply turn the throttle on/off. Operation: Often integrates a button or switch on the throttle handle to switch between speed settings or to cut off the throttle power. Voltage Signal: The throttle uses a Hall effect sensor that outputs a variable voltage from around 0.8V to 4.3V depending on the twist position; the controller interprets this to adjust the motor speed. Safety: Some throttles include logic to disable the motor output if certain conditions are met (e.g., brake lever pulled, or throttle off). Common Use: This feature is popular in budget and mid-range e-bikes or scooters where riders need a simple control for different speed modes or an on/off throttle control.
