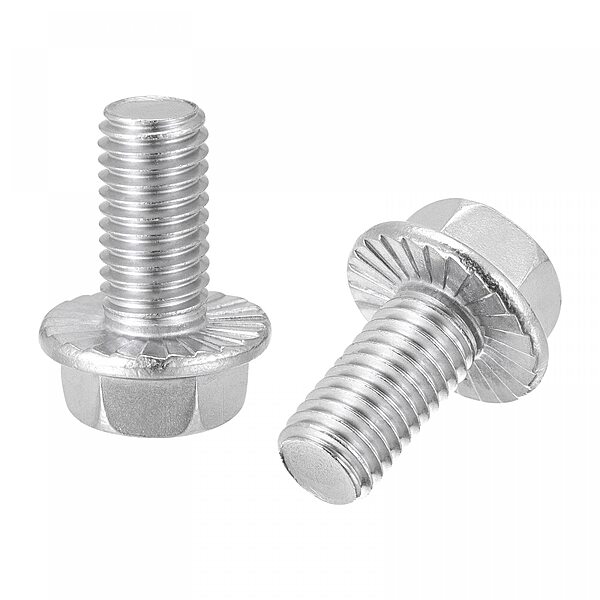

BOLT - HEX FLANGE M 10X25

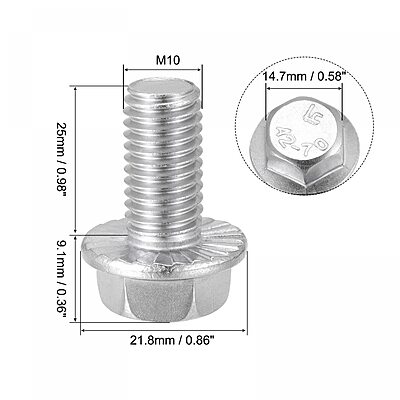

A Bolt - Hex Flange M10x25 is a metric fastener commonly used in automotive, industrial, and EV applications for its high strength and built-in washer-like flange that distributes load and prevents loosening.​ Key Features Size: M10 diameter, 25 mm length, 1.5 mm thread pitch.​ Flange Diameter: 22.3 mm, providing a broad bearing surface.​ Material: Typically Class 10.9 alloy steel (quenched and tempered), offering high tensile strength (min 1,040 MPa).​ Standard: DIN 6921, ISO 4017.​ Head Style: Hex flange, easy to tighten with a standard 15 mm spanner.
