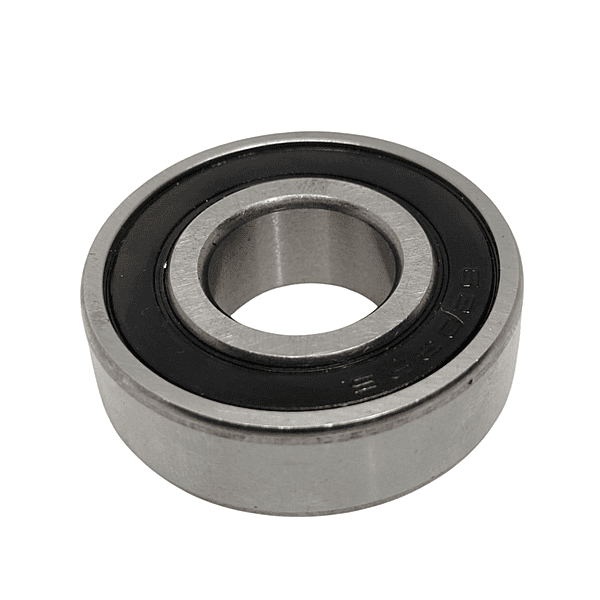

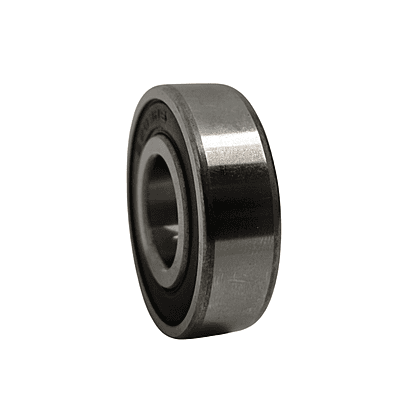

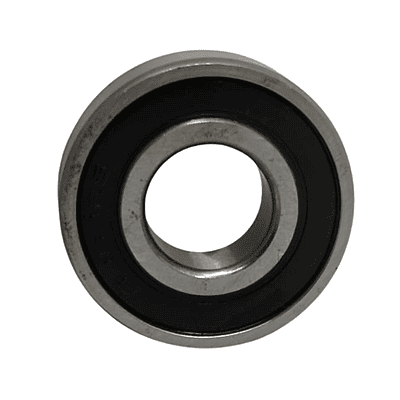

BEARING NO 6203

Bearing 6203 is a single-row deep groove ball bearing with standard dimensions of 17mm inner diameter, 40mm outer diameter, and 12mm width, commonly used in high-speed, moderate-load applications. ​ Specifications It supports dynamic loads around 9,000-10,100 N and static loads of 4,750-4,800 N, with maximum speeds up to 28,000 RPM (grease) or higher with oil lubrication. Materials include chrome steel or stainless steel, available in open, shielded (Z), or sealed (2RS) variants, operating from -20°C to 120°C.
